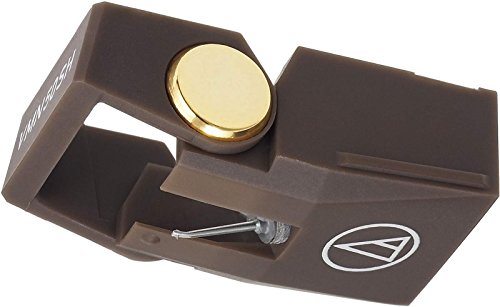

AUDIO TECHNICA VM750SH Phonograph Cartridge Phonograph cartridge, 1/2
The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.
Product Features
Frequency Response 20-27,000 Hz
Channel Separation 30 dB (1 kHz)
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance 47,000 ohms
Output 4.0 mV (at 1 kHz, 5 cm/sec)
Channel Balance 1.0 dB (1 kHz)

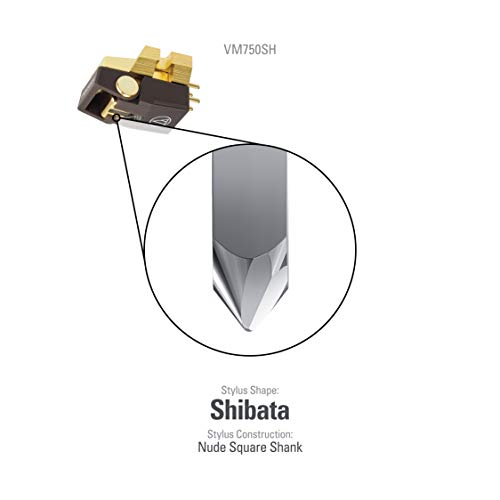

Stylus Shape 2.7 x 0.26 mil Shibata
Cantilever Aluminum tapered pipe
Mount Half-inch
0
0
0
0
0
0
0
Cliquez-ici pour vous assurer de la compatibilité de ce produit avec votre modèle
Type VM Type Montage 1/2′ centres Réponse en Fréquence 20 – 27,000Hz Séparation des Canaux 30dB (1kHz) Equilibre des Canaux en Sortie 1.0dB (1kHz) Tension de Sortie 4.0mV (1kHz, 5cm/sec.) Angle de Piste Vertical 23? Force d’Appui Vertical 1.8 – 2.2g (2.0g standard) Type de Diamant Shibata Taille du Diamant 0.26 x 2.7 mil Fixation du Diamant Nude Square Shank Cantilever (levier porte-pointe) Aluminium Tapere
d Pipe Impédance de la Bobine 2,700Ohm (1kHz) Compliance Statique 40 x 10-6 cm/dyne Compliance Dynamique 10 x 10-6 cm/dyne (100Hz) Impédance de Charge Recommandée 47,000Ohm Capacité de Charge Recommandée 100 – 200pF Poids 8.0g Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm Pointe de Lecture de Remplacement VMN50SH Accessoires Fournis Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic scre
wdriver ×1, Brush ×1, Lead wire set ×1
