AUDIO TECHNICA VM540ML/H Headshell/Cartridge Combo Kit Headshell/cart

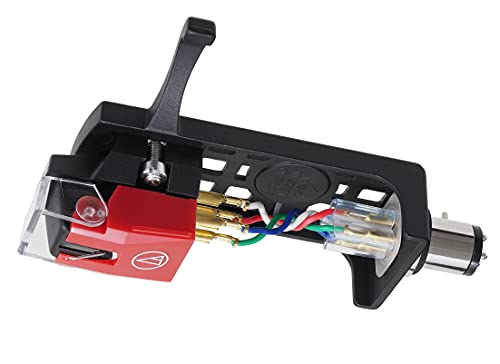

The VM540ML/H combo kit includes the VM540ML MicroLine® dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2″-mount headshell. The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.
Product Features
Frequency Response 20-27,000 Hz
Channel Separation 28 dB (1 kHz)
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance 47,000 ohms
Output 4.0 mV (at 1 kHz, 5 cm/sec)
Channel Balance 1.0 dB (1 kHz)
Stylus Shape 2.2 x 0.12 mil MicroLine®
Cantilever Aluminum tapered pipe
Mount Half-inch
0
0
0
0
0
0
Cliquez-ici pour vous assurer de la compatibilité de ce produit avec votre modèle
Type de type VM Montage 1/2″ centres Réponse en fréquence 20 – 27 000 Hz Séparation des canaux 28 dB (1 kHz) Balance de canal de sortie 1 dB (1 kHz) Tension de sortie 4,0 mV (1 kHz, 5 cm/s). Angle de suivi vertical : 23 ? Plage de force de suivi verticale : 1,8 – 2,2 g (2,0 g standard). Forme de l’aiguille microline. Taille de l’aiguille : 0,12 x 2,2 mm. Construction de l’aiguille. Tige carrée nu
voir tube conique en aluminium Spulenimpedanz 2,700 Ohm (1 kHz) Conformité statique 40 x 10-6 cm/dine Conformité dynamique 10 x 10-6 cm/dine (100 Hz) Impédance de charge recommandée 47 000 Ohm Capacité de charge recommandée 100 – 20 0pF Poids 6.4 g Dimensions 17,3 (H) x 17,0 (l) x 28,2 (L) mm Aiguille de rechange VMN40ML Accessoires inclus Vis d’installation capsule, 5 mm × 2 et 10 mm × 2, rondelle × 2, écrou hexagonal × 2, Destorn
1 brosse non magnétique × 1 Set de câbles terminaux × 1
